netBooter™NP-0808DU and NP-0808DUH PDUs provide secured remote power source management of 8 independent outlets. Includes true RMS AC current reading per outlet and environment temperature monitoring* via TCP/IP networks or local direct connection.
User: testme Pass: testme
Looking for additional networking features (SSH/LDAP/Radius/Syslog/Custom SSL) or billing grade energy (kWh) measurements with per outlet wattage?
Check Out SynLink Switched Pro+ SP-1001A

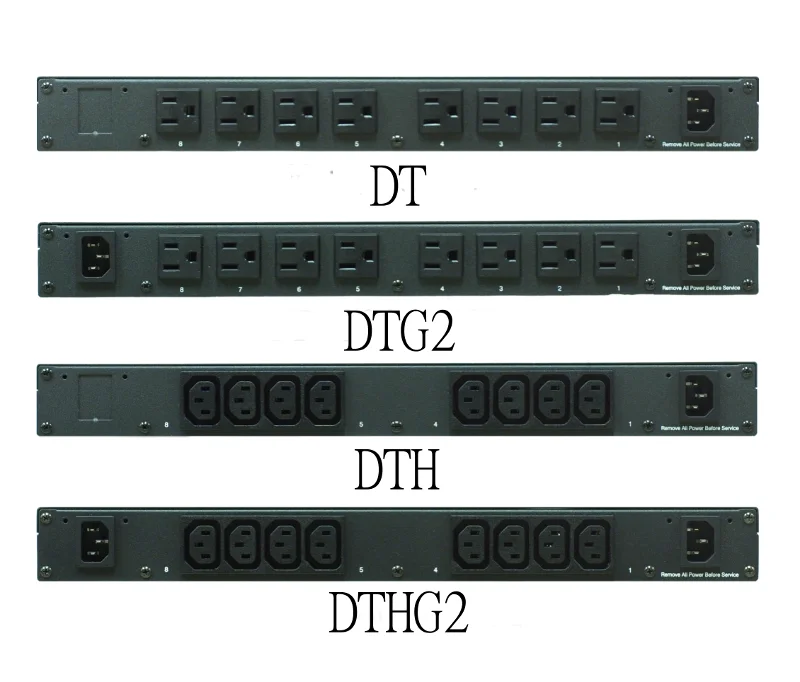

Model Variations:
NP-0808DUH - PDU equipped with IEC320 C13 outlets
NP-0808DUG2 - PDU equipped with two power inlets splitting 8 outlets
(Supports up to 30A)
NP-0808DUHG2 - PDU same as NP-0808DUG2 described above with IEC320 C13 outlets
Features:
- 8 Independently managed power outlets.
- True RMS current sensor per outlet provides independent amperage for each outlet.
- Status LEDs for each outlet, link LED and device power LED
- Configure and control with HTTP/HTTPS web interface or command line via Telnet / Serial
- Supports TLSv1.2 encryption for HTTPS access
- Source IP Address Access Filtering/Blocking
- Use Autoping to reboot outlets after specified ping losses.
- Daily reboot or weekly schedule for outlet on/off time.
- Sync to NTP server or use real-time clock.
- Sends event notifications via email or view local event log.
- Restrict users to individual outlets as desired.
- Use external dial-up modem for backend solution (DB9 serial port)
Specifications: (Note - Applies to H version)
- 8 x NEMA 5-15R Outlets - (8 x IEC 320 C13 Outlets)
- Handles up to 15A at 120VAC - 10A at 230VAC(H model)
- 1U enclosure: L 19" x W 6" x H 1.75"
- 1 x DB9 RS232 Port: Data: 7 or 8 bits. Stop Bits: 1 or 2. Parity: None Flow Control: None. Baud Rate: 2400 to 19200.
- Network Protocols: HTTP/HTTPS, IP/TCP, ICMP, NTP, SMTP, POP3, DHCP, Telnet, and BootP
- Network Interface: 10/100-Base T. RJ-45.
- Operational Temperature Environment: -25C° → 50C°
- Humidity: 5-95%, non-condensing
- Safety and Compliance: cTUV(US & Canada), UL-60950, FCC Class B
Specifications
| Item | NP-0808DU | NP-0808DUG2 | NP-0808DUH | NP-0808DUHG2 |
|---|---|---|---|---|
| Dimensions | 19” X 6.25” X 1.75” 1U | |||
| Input Power Voltage | 120 VAC | 100 VAC - 230 VAC | ||
| Total Load |
15A | 30A | 15A | 30A |
| Power Input | 1 - IEC 320 C14 | 2 - IEC 320 C14 | 1 - IEC 320 C14 | 2 - IEC 320 C14 |
| AC Outlet Type | NEMA 5-15R | IEC 320 C13 | ||
| AC Current Draw Monitoring |
8 - Outlet current sensors | 8 - Outlet current sensors | ||
| Console Interface | 1 - RS232 Port. DB9 Connector. Data: 7 or 8 bits. Stop Bits: 1 or 2. Parity: None Flow Control: None. Baud Rate: 2400 to 115200. | |||
| Network Interface | 10/100-Base T. RJ-45 | |||
| Network Protocals | ICMP, IP/TCP, NTP, SNMP, SMTP, DHCP, Telnet, HTTPS/HTTP and BootP | |||
| LED Indicators | 8 - Power outlet On/Off status LEDs 1 - Network LED 1 - Device Power LED |
|||
| Weight | 8 Lbs | |||
| Operational Temperature | -25C° – 50C° | |||
| Humidity | 5-95%, non-condensing | |||
| UL/FCC Compliance | TUV(US), UL-60950, FCC Class B | |||
