netBooter™NP-1601DU and NP-1601DUH PDUs provide secured remote power source management of 16 independent outlets. Includes true RMS AC current reading and environment temperature monitoring* via TCP/IP networks or local direct connection.
For a dual input power PDU, the inputs are not redundant, each outlet bank is split to provide a total of 30 Amps. Outlet banks also have a dedicated input current sensor for independent readings on each group. Group A (#1-8) 15A , Group B (#9-16) 15A
User: testme Pass: testme
Model Variations:
NP-1601DU - PDU 2-U rackmount, outlet NEMA5-15, dual IEC320 C14 inlet, equipped with NEMA 5-15 outlets.
NP-1601DUH - PDU same as NP-1601DU, except outlet type is IEC320 C13. NP-1601DUA - PDU, 2-U rackmount, _outlet NEMA5-15, single power inlet IEC320-C19. Works variaties of detacheable single power cords.

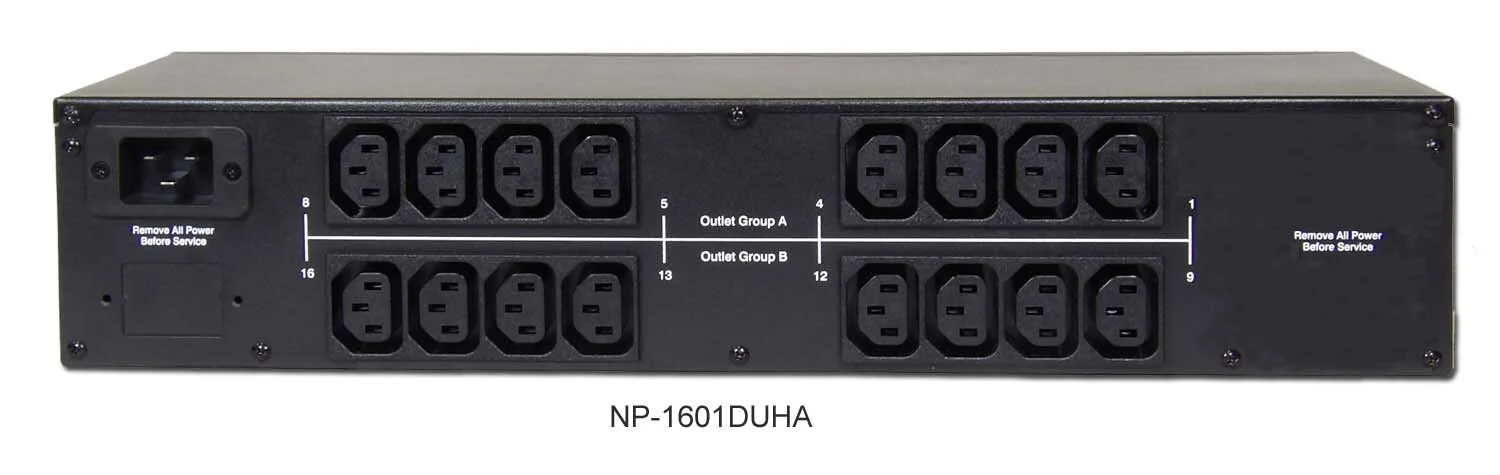

NP-1601DUAH - PDU same as NP-1601DUA , except outlet type is IEC320 C13.
NP-1601DUA30 - PDU same as NP-1601DUA, except using attached single power cord with NEMA L5-30 plug.
Specifications: (Note - Applies to H version)
- 16 x NEMA 5-15R Outlets - (16 x IEC 320 C13 Outlets)
- Handles up to 30A at 120VAC - 20A at 230VAC(H model)
- 2U enclosure: L 19" x W 6.25" x H 3.5"
- 1 x DB9 RS232 Port: Data: 7 or 8 bits. Stop Bits: 1 or 2. Parity: None Flow Control: None. Baud Rate: 2400 to 115200.
- Network Protocols: HTTP/HTTPS, IP/TCP, ICMP, NTP, SMTP, POP3, DHCP, Telnet, and BootP
- Network Interface: 10/100-Base T. RJ-45.
- Operational Temperature Environment: -25C° → 50C°
- Humidity: 5-95%, non-condensing
- Safety and Compliance: cTUV(US & Canada), UL-60950, FCC Class B
Features:
- 16 Independently managed power outlets. (8 outlets to each power input)
- Status LEDs for each outlet, link LED and device power LED
- True RMS current sensor for each power input. Individual readings for both outlet groups.
- Configure and control with HTTP/HTTPS web interface or command line via Telnet / Serial
- Supports TLSv1.2 encryption for HTTPS access
- Source IP Address Access Filtering/Blocking
- Use Autoping to reboot outlets after specified ping losses.
- Daily reboot or weekly schedule for outlet on/off time.
- Sync to NTP server or use real-time clock.
- Sends event notifications via email or view local event log.
- Restrict users to individual outlets as desired.
- Use external dial-up modem for backend solution.
Specifications
| Item | NP-1601DU | NP-1601DUH | NP-1601DUA | NP-1601DUAH |
|---|---|---|---|---|
| Dimensions | 19” X 6.25” X 3.5” 2U | |||
| Input Power Voltage | 120VAC (50/60Hz) | 230VAC (50/60HZ) VAC | 120VAC (50/60Hz) | 230VAC (50/60HZ) VAC |
| Total Load |
30A | 20A | 20A | 20A |
| Power Input | 2 - IEC 320 C14 | 2 - IEC 320 C14 | 1 - IEC 320 C20 | 1 - NEMA L6-30P Cord (attached) |
| AC Outlet Type | 16 - NEMA 5-15R | 16 - IEC 320 C13 | 16 - NEMA 5-15R | |
| AC Current Draw Monitoring |
2 - Input current sensors | 1 - Input current sensor | ||
| Console Interface | 1 - RS232 DB9 port or USB Type-A serial port. Data: 7 or 8 bits. Stop Bits: 1 or 2. Parity: None Flow Control: None. Baud Rate: 2400 to 115200. | |||
| Network Interface | 10/100-Base T. RJ-45 | |||
| Network Protocals | ICMP, IP/TCP, NTP, SNMP, SMTP, DHCP, Telnet, HTTPS/HTTP and BootP | |||
| LED Indicators | 16 - Power outlet On/Off status LEDs 1 - Network LED 1 - Device Power LED |
|||
| Weight | 9 Lbs | |||
| Operational Temperature | -25C° – 50C° | |||
| Humidity | 5-95%, non-condensing | |||
| UL/FCC Compliance | TUV(US), UL-60950, FCC Class B | |||
